Applied Technical Services Example

Applied Technical Services has used Protomatix production tooling and test fixtures extensively.

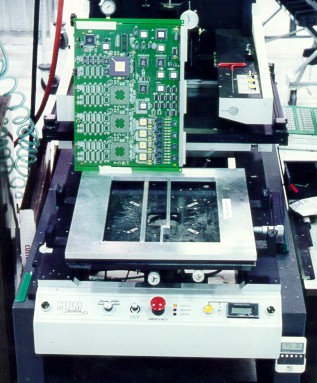

Circuit board vacuum plate for solder paste stencil machine.

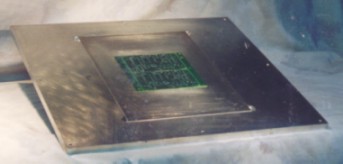

Vacuum plate with alternate board adapter.

Vacuum plate for board with surface mount componants on both sides.

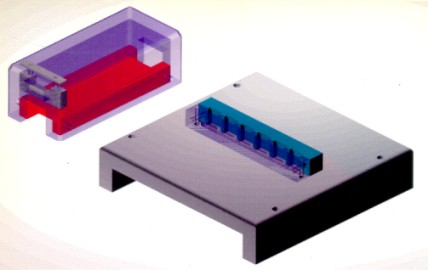

Leviton circuit board test fixture design to hold IDI spring test probes and RJ45 connectors.

Test fixture with device (in red) under test using IDI spring test probes in hand held upper signature analyzer. This board was challenging to produce as there were through hole connectors on both sides of the board.

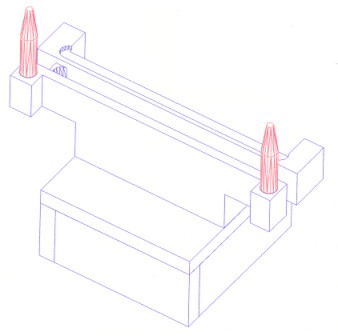

Custom solder volcano nozzle design to accommodate soldering of double sided board.

Fabricated volcano solder nozzle.

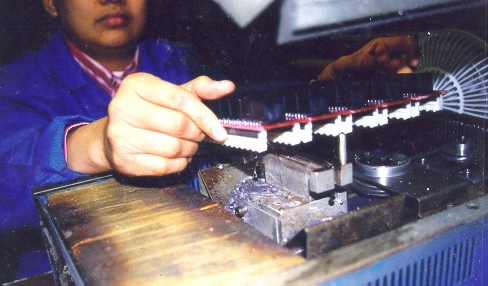

Solder nozzle in use.

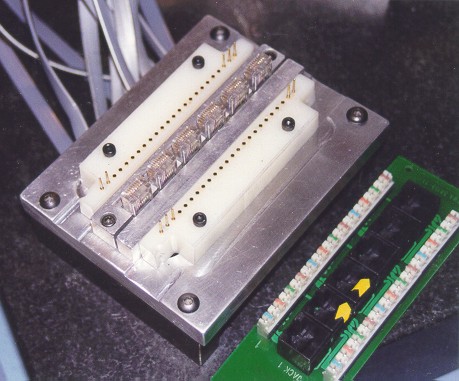

Later this test fixture was remanufactured for the easier to produce green circuit board.

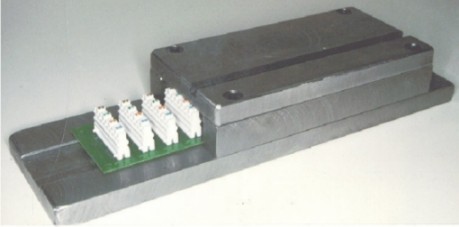

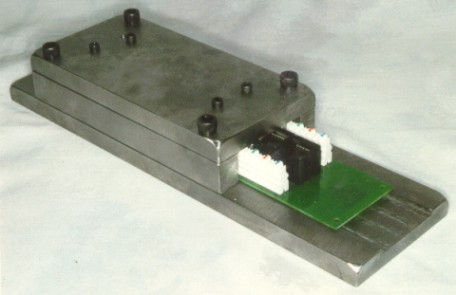

Gage to assure connector alignment of new green circuit board.

Gage to assure connector alignment of different Leviton circuit board.
